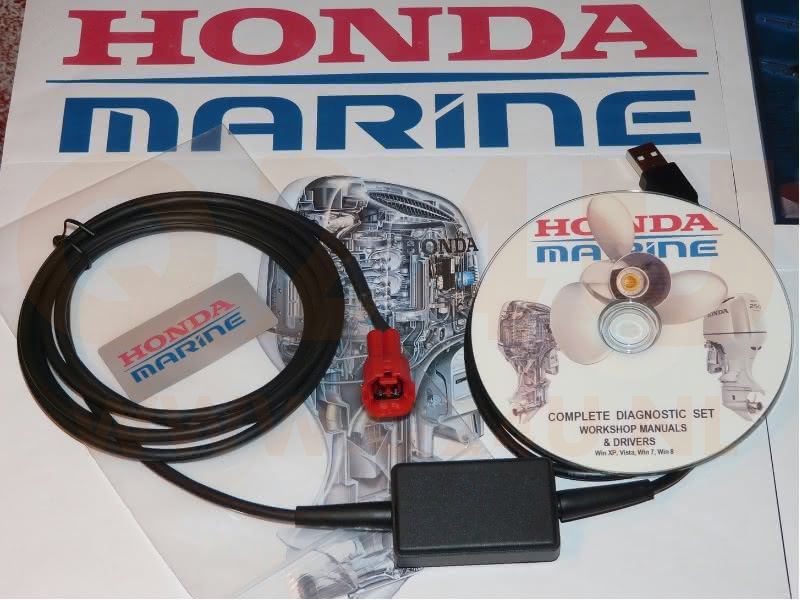

Honda Marine diagnose USB kabel kit

Dit is een uitlees set voor Honda buitenboordmotoren en Jet ski’s, uitlezen gaat eenvoudig via de SUB van uw computer.

This cable is designed for Honda fuel injected outboard engines. The user is able to read the diagnostic trouble codes (DTCs) and clear them after the repair.

Software updates are offered free of charge for the lifetime of this product.

- Sensor values are shown in real time, enabling a trained personnel for extended fault and engine performance analysis.
- The measurements are captured automatically and can be saved and played back from LOG files.
- The USB connection, compact size and auto setup make this product portable and extremely easy to use.

Supports HONDA MARINE outboard models:
BF 115A - (2005-2006)
BF 115D - (all)
BF 130A - (2005-2006)
BF 135A - (2004-2006)
BF 135A4 - (all)
BF 150A - (2004-2006)
BF 175A - (2003-2007)
BF 200A - (all)
BF 250A - (all)
BF 40D - (all)
BF 50D - (all)
BF 60A - (all)
BF 75A - (all)
BF 90D - (all)
BFP 60A - (all)

Works with all versions of Windows WIN XP, Vista, Win7, Win8

Instructions:
- Have the ignition key in OFF position.
- Connect the cable connector to the 4-pole diagnostic plug of the engine, and connect the USB plug to your Windows PC.
- Start the software application.
- Select neutral, turn ignition ON and have the engine stop switch in RUN position.
- Press the "Connect" button. The engine parameters must be shown on the screen.
- Start the engine if you wish to inspect parameters with the engine running.

Wordt geleverd:
- USB kabel
- Software CD
- Handleiding PDF (Engels)
